上海淞江減震器集團有限公司官方網站為您介紹：KQJZ-B型裁斷機阻尼空氣減振器信息，淞江集團為眾多大型振動設備提供減振降噪解決方案，以下是為裁斷機推薦的一款專用減振器，減振效果沒話說，因為他是目前減振效果最好的減振器，而且沒有之一，減振效果能達到百分之95以上，安裝前后支持檢測。

The official website of Shanghai Songjiang shock absorber Group Co., Ltd. introduces to you: kqjz-b cutting machine damping air shock absorber information. Songjiang group provides vibration and noise reduction solutions for many large-scale vibration equipment. The following is a special shock absorber recommended for cutting machine. The vibration reduction effect is speechless, because it is the shock absorber with the best vibration reduction effect at present, and there is no one, and the vibration reduction effect can reach more than 95%, Support testing before and after installation.

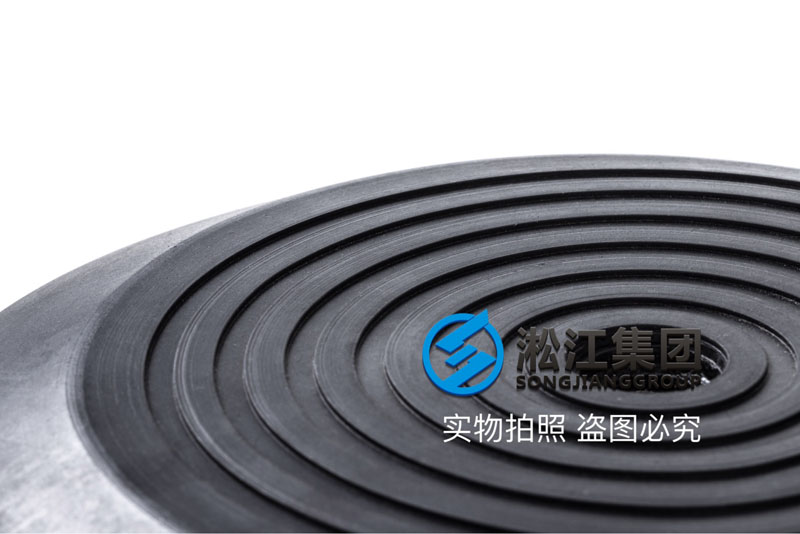

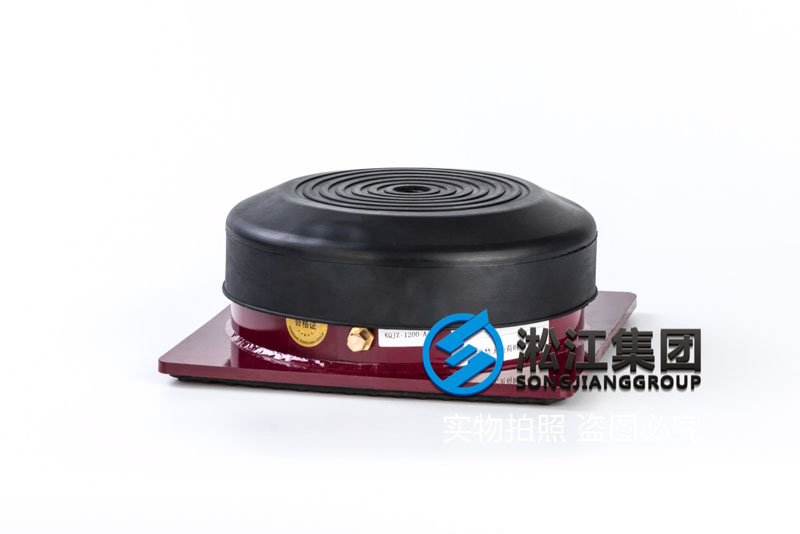

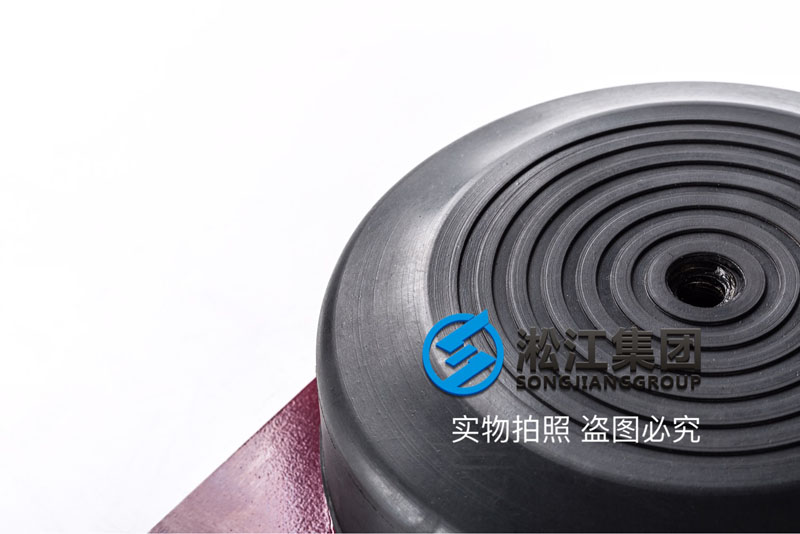

一、KQJZ-B型裁斷機阻尼空氣減振器實物拍照：

二、KQJZ-B型裁斷機阻尼空氣減振器介紹：

官方承諾 Official promise
橡膠主材：CR（氯丁橡膠）
液壓材料：進口阻尼液
使用壽命：10年以上
五年質保：室內使用最高可以質保5年
減震效果：使用前后對比可達95%
支持檢測：安裝前后支持效果檢測（第三方）
問題賠付：如有質量問題，退還全部貨款，并承擔拆裝費和運費；
Main rubber material: CR (chloroprene rubber)
Hydraulic material: imported damping fluid
Service life: more than 10 years
Five-year warranty: indoor use can be guaranteed for up to 5 years
Shock absorption effect: up to 95% before and after use
Support detection: support effect detection before and after installation (third party)
Compensation for problems: If there is a quality problem, the full payment will be refunded, and the disassembly and assembly fees and freight will be borne;

三、KQJZ-B型裁斷機阻尼空氣減振器結構及參數介紹：

四、KQJZ-B型裁斷機阻尼空氣減振器特性：
1、空氣式減振裝置，配合油壓阻尼筒設計；
2、有效抑制設備振幅過大，保證設備穩定；
3、適用于沖擊振動的消除，低自然頻率值設計，減振效果佳；
4、使用CR（Neoprene Rubber）材質， 耐候性佳使用壽命長;
5、采用機器人焊接氣墊殼體，橡膠與殼體一體成形；
6、氣密性好，避免經常充氣維護，使用更省心；
7、防油帽設計，具抗油性可防止一般油污腐蝕；
8、內部設計阻尼機構可有效避免共振現象；
9、自然頻率3Hz~5Hz.阻尼系數 0.12~0.13，使用壓力4.5 kg/cm^2，符合JISD-4101氣墊耐壓測試標準；

五、KQJZ-B型裁斷機阻尼空氣減振器用途：

適用于裁斷機、高速沖床、注塑機、油壓機、吸塑機、模切機、全自動噴涂油機、印刷機、紙箱壓痕啤機、往復式空壓機、下料機、紡織機、刺繡機針剌機、絎縫機、繡花機、成形機、打杯機、CNC機床、剪床、洗濯機、工業洗衣機、三座標檢測儀、測長儀、二次元檢測儀，測圓儀等自振較大設備的減振及易受振動干擾的設備隔振防振；
其他適合：減振效果要求更高，B型的擺動會比A型的擺動降低；
Suitable for cutting machines, high-speed punches, injection molding machines, hydraulic presses, blister machines, die-cutting machines, automatic spraying oil machines, printing machines, carton creasing machines, reciprocating air compressors, blanking machines, textile machines, embroidery machines Needle punching machine, quilting machine, embroidery machine, forming machine, cupping machine, CNC machine tool, shearing machine, washing machine, industrial washing machine, three-coordinate detector, length measuring instrument, two-dimensional detector, circle measuring instrument, etc. Vibration reduction of equipment with large natural vibration and vibration isolation and anti-vibration of equipment susceptible to vibration interference;
Other suitability: The shock absorption effect is more demanding, and the swing of type B will be lower than that of type A;

六、KQJZ-B型裁斷機阻尼空氣減振器展會現場：

相關鏈接：沖床減震器

上海淞江減震器集團有限公司官方網站為您介紹：KQJZ-1200-A沖床空氣減震器信息，淞江集團為沖床設備推薦一款專用的空氣減震器產品，是沖床震動的完美吸收者，眾多沖床安裝使用后都被空氣減震器的優質效果而滿意。
Shanghai Songjiang absorber group limited official website introduces for you: KQJZ-1200-A punch air shock absorber, Songjiang group for air damper press equipment recommended a special product, is the perfect vibration absorption of punch, punch after the installation and use are numerous high quality and satisfactory effect of air shock absorber.

使用案例：上海舜元產業園重建擴建項目

上海淞江減震器集團有限公司官方網站為您介紹：STRM型穩定橡膠減振器“C型沖床首先”信息，淞江集團為眾多沖床提供減震降噪解決方案，以下是為C型沖床提供減震器，效果好。

官方承諾 Official promise
橡膠主材：NR/NBR/CR復合材料；
使用壽命：5年以上（無油情況下）
五年質保：室內使用最高可以質保5年
減振效果：使用前后對比可達70%
支持檢測：安裝前后支持效果檢測（第三方）
問題賠付：如有質量問題，退還全部貨款，并承擔拆裝費和運費；
Main rubber material: NR/NBR/CR composite material;
Service life: more than 5 years (without oil)
Five-year warranty: indoor use can be guaranteed for up to 5 years
Shock absorption effect: up to 70% before and after use
Support detection: support effect detection before and after installation (third party)
Compensation for problems: If there is a quality problem, the full payment will be refunded, and the disassembly and assembly fees and freight will be borne;

特性 characteristic:
1、有效的隔絕設備沖擊振動，防振效果極佳；
2、安裝后機械設備晃動少，能保持機械設備穩定性；
3、能調節高度，保持設備水平；
4、安裝簡單方便，無需惰性基礎；
5、采用特殊橡膠材質，耐用性強結構堅固耐用；
6、對于放置高樓層設備也能適用減振80%以上；
7、對減振要求較高的設備能高效減振；
1. Effectively isolate the shock and vibration of the equipment, and the anti-vibration effect is excellent;
2. The mechanical equipment shakes less after installation, which can maintain the stability of the mechanical equipment;
3. It can adjust the height and keep the equipment level;
4. The installation is simple and convenient, without inert foundation;
5. The use of special rubber material, strong durability, strong and durable structure;
6. It can also apply shock absorption of more than 80% for high-floor equipment;
7. Equipment with high shock absorption requirements can efficiently reduce shock;

主要用途The main purpose:
1、35-300tons C型沖床；
2、曲柄、無曲柄、液壓、氣壓沖床；
3、剪床、折床、大型裁斷機；
4、高樓層使用設備；
5、慢速沖床、鍛壓沖床、折彎機；10噸以上，重量大的，速度慢的設備，要求穩定性高的，不允許有擺動的，可以選擇該款減振器；
1. 35-300tons C-type punch;
2. Crank, non-crank, hydraulic and pneumatic punch press;
3. Shearing machine, folding machine, large cutting machine;
4. Equipment used on high floors;
5. Slow-speed punches, forging presses, bending machines; more than 10 tons, heavy, slow-speed equipment, which requires high stability, and does not allow swinging, you can choose this type of shock absorber;

相關鏈接：KQJZ-1200-A沖床空氣減震器
