BGF-DN300熱力管道金屬補償器
BGF Heat pipe metal compensator
上海淞江減震器集團有限公司官方網站為您介紹：BGF-DN300熱力管道金屬補償器信息，淞江集團是一家從事金屬補償器的生產廠家，為北方眾多熱力公司配套，波紋全部采用正宗304加厚材料生產，確保城市供暖安全運行。
Shanghai Songjiang absorber group limited official website for your introduction: BGF-DN300 heat pipe metal compensator, Songjiang group is a professional manufacturer of metal compensator, for many northern Thermotics Inc supporting the use of authentic materials all 304 thick corrugated production, to ensure the safety of city heating operation.

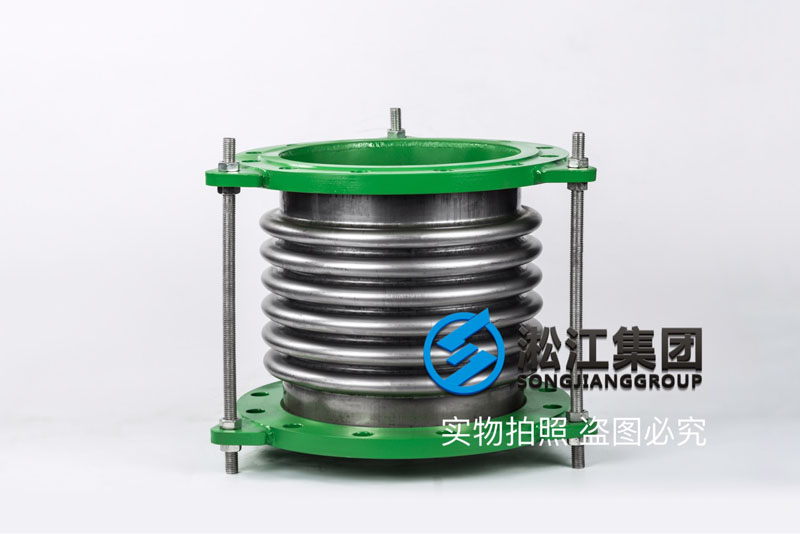

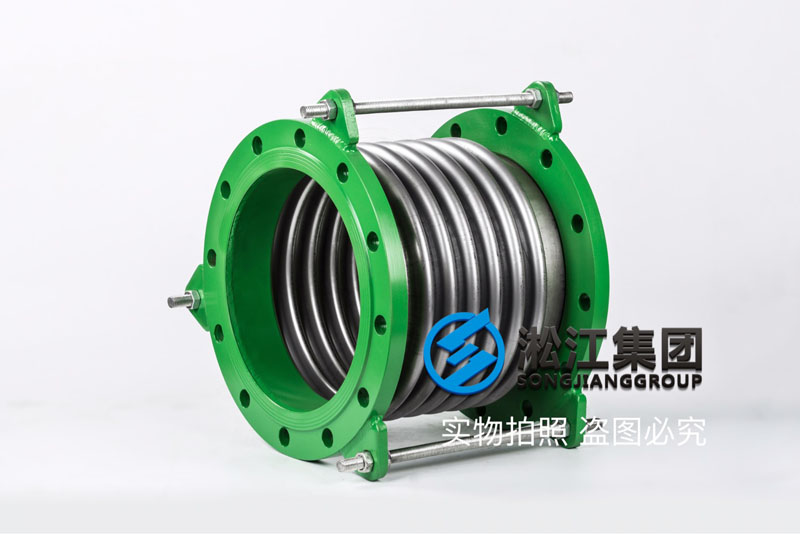

名稱：不銹鋼金屬補償器
口徑：DN300mm
壓力：PN16
波數：6波
厚度：1.5mm
長度：370mm
伸縮量：60mm
波紋材質：不銹鋼304
法蘭材質：碳鋼（鍛打）
適用于：管道管線中
作用：吸收管道熱脹冷縮的軸向位移
缺點：請?jiān)诠艿肋M(jìn)水口加裝有效去除氯離子裝置（氯離子含量不超過25mg/L），避免水
氯離子含量超標，產生針孔腐蝕；
取代者：
橡膠接頭是用在設備進出口的，可以補償軸向和橫向位移，減震效果是最好的。并且不受管道內部介質的腐蝕。
品品：淞江集團
制造商：上海淞江減震器集團有限公司
Name: stainless steel metal compensator
Caliber: DN300mm
Pressure: PN16
Wave number: 6 wave
Thickness: 1.5mm
Length: 370mm
Scalability: 60mm
Corrugated material: stainless steel 304
Flange material: carbon steel (forging)
Brand: Songjiang group
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
BGF-DN300熱力管道金屬補償器采用奧氏體不銹鋼材料或按用戶要求的材料制造，具有優良的柔軟性，耐蝕性，耐高溫性，耐高壓性，在管路中可以補償軸向位移，用以溫度補償和吸收振動、降低噪聲、改變介質輸送方向、消除管道間或管道與設備間的機械位移等，雙法蘭金屬波紋軟管對有軸向位移的管線補償尤為適用。
BGF-DN300熱力管道金屬補償器屬于一種補償元件。利用其工作主體波紋管的有效伸縮變形，以吸收管線、導管、容器等由熱脹冷縮等原因而產生的軸向變化，或補償管線、導管、容器等的軸向位移。也可用于降噪減振。
BGF-DN300 heat pipe metal compensator adopts austenitic stainless steel material or according to user requirements for the manufacture of materials, with softness, excellent corrosion resistance, high temperature resistance, high pressure, in the pipeline can be connected to any direction, with temperature compensation and absorption vibration and noise reduction, changing the medium conveying direction, eliminate the mechanical displacement of the pipe or pipe and between devices, especially for the flexible joint with double flange corrugated metal hose on the displacement and vibration of pump and valve etc..
The BGF-DN300 thermal pipe metal compensator belongs to a compensation element. The effective expansion and deformation of bellows should be utilized to absorb the size changes caused by thermal expansion, shrinkage and other reasons, or to compensate for axial, lateral and angular displacement of pipelines, pipes and containers. It can also be used for noise reduction and vibration reduction.

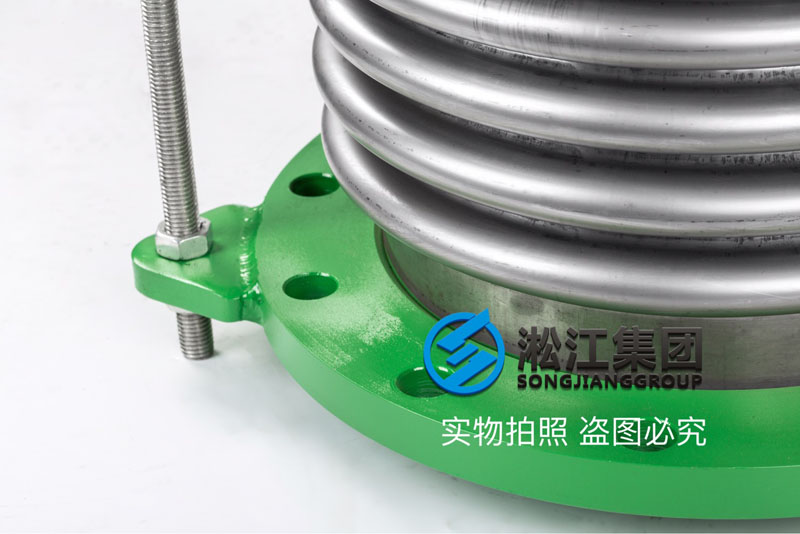

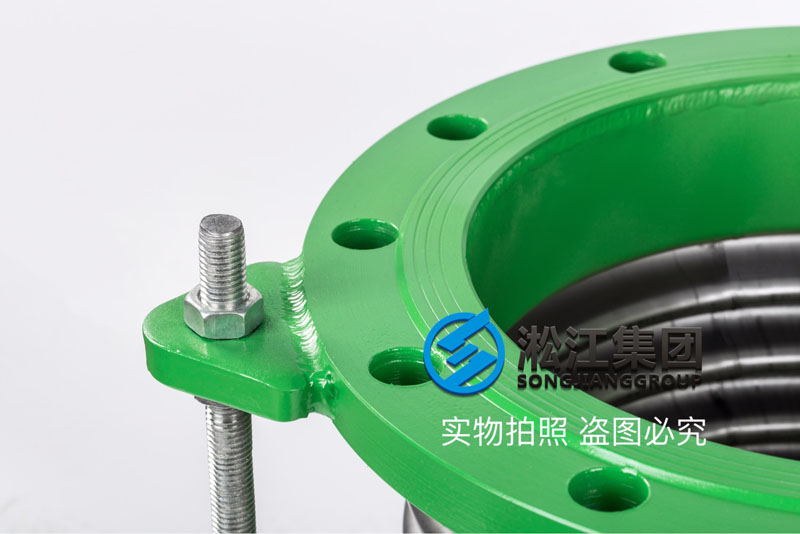

材料說明：上海淞江集團所有波紋金屬補償器產品所有波紋全部采用不銹鋼304正材生產，支持各種光譜儀檢測，假一賠十，厚度全部厚于同行業標準，為了更持久的使用壽命，法蘭全部采用山西正宗鍛打材質，焊材全部采高于母材等級標準，耳板全部采用加大加厚尺寸生產，螺桿全部采用8.8級高強度鍍鋅，為100%確保產品的綜合強度，上海淞江集團工廠通過德國萊茵TUV認證，（
2021年上海淞江減震器集團南通有限公司獲得德國萊茵TUV證書），我們嚴格按照壓力管道生產要求進行生產，讓出廠的每一個波紋金屬補償器產品達到100%的合格。
Material description: all corrugated metal compensator products of Shanghai Songjiang group are made of stainless steel 304 normal materials, which supports the detection of various spectrometers. One false is compensated for ten, and the thickness is all thicker than the industry standard. In order to prolong the service life, all flanges are made of Shanxi authentic forging materials, all welding materials are higher than the base metal grade standard, and all ear plates are made of thickened size, All the screws are made of grade 8.8 high-strength galvanized. In order to ensure the comprehensive strength of the products 100%, Shanghai Songjiang Group factory has passed the TUV certification of Germany Rhine (Shanghai Songjiang shock absorber Group Nantong Co., Ltd. obtained the TUV certificate of Germany Rhine in 2021). We produce in strict accordance with the production requirements of pressure pipeline, so that each corrugated metal compensator product delivered can reach 100% qualification.
