DN125消防水箱管道波紋減震接頭
Fire bellows shock absorber joint

上海淞江減震器集團有限公司官方網站為您介紹：DN125消防水箱管道波紋減震接頭信息，淞江集團為眾多消防工程配套波紋減震接頭產品，改產是由不銹鋼生產的波紋，該波紋具有良好的減震效果和軸向位移補償作用，可以有效的保護消防水箱管道的長期使用壽命。
Shanghai Songjiang absorber group limited official website for your introduction: DN125 fire water tank bellows joint damping information, Songjiang group for a number of fire engineering supporting corrugated joint damping products, the production is made of corrugated stainless steel production, the bellows has good damping effect, long can effectively protect the fire water tank.

制造商：上海淞江減震器集團有限公司

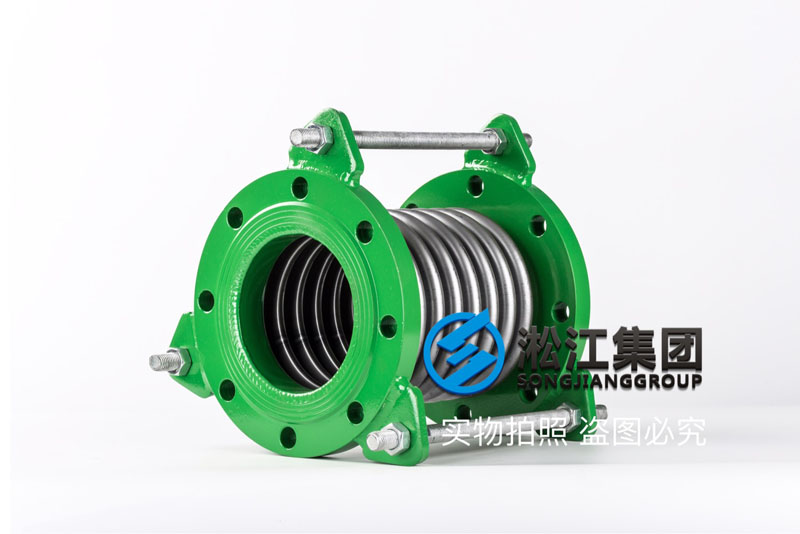

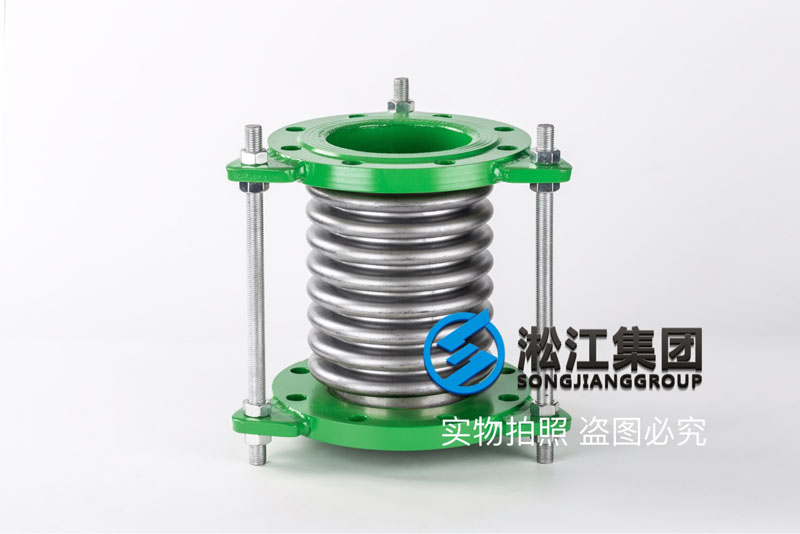

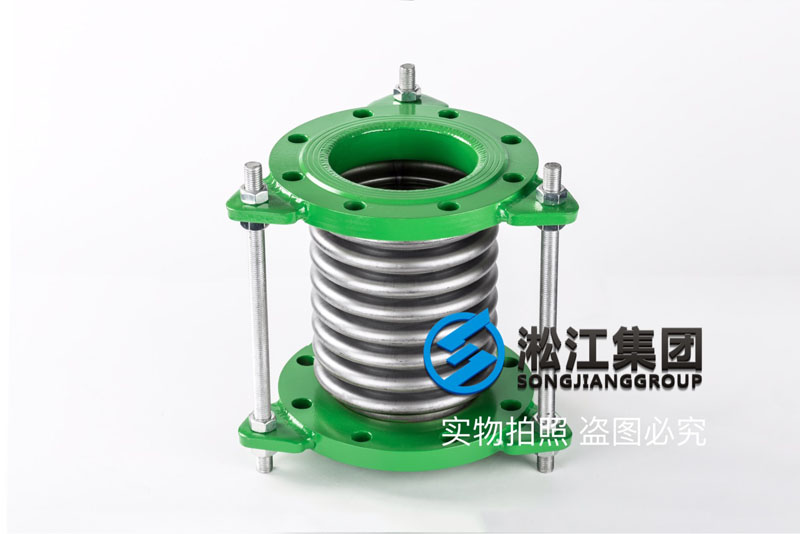

Name: DN125 fire tank corrugated shock absorber joint

Caliber: DN125mm

Pressure: PN16

Wave number: 8 wave

Thickness: 0.8mm

Length: 230mm

Scalability: 50mm

Corrugated material: stainless steel 304

Flange material: carbon steel (forging)

Brand: Songjiang group

Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

了解該產品參數(shù)信息請點擊：【樣冊P93】BGF型 不銹鋼波紋補償器

材料說明：

水箱波紋減震接頭管體：為了更持久的使用壽命，全部采用不銹鋼304正材生產，支持各種光譜儀檢測，假一賠十，厚度全部厚于同行業(yè)標準。

連接法蘭：法蘭全部采用山西正宗鍛打材質，無論是強度還是密封性都是很好的材質，不要拿市面上的鑄鋼、鋼板鋼法蘭來對比，沒有任何可比性。

焊材：焊材全部采高于母材等級標準，讓焊接點更加牢固。

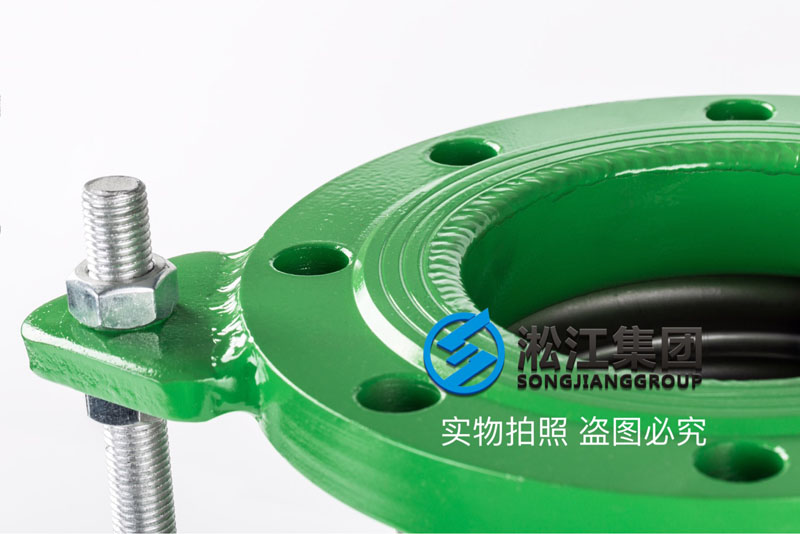

限位耳板：耳板全部采用加大加厚尺寸生產，每個型號都可以與同行業(yè)同型號去一對一的對比，這就是所謂的沒有對比就沒有傷害。

限位螺桿：螺桿全部采用8.8級高強度鍍鋅，為100%確保產品的綜合強度，不要與市面的4.8級來對比，無意義。

生產標準：淞江集團通過德國萊茵TUV認證，并且嚴格按照壓力管道生產要求進行生產，讓出廠的每一個水箱波紋減震接頭產品達到100%的合格。

Material description:

Bellows body: for longer, all stainless steel 304 material is used to support all kinds of spectrometers, and the fake one is ten, the thickness is all thicker than the same industry standard.

Connecting flange: all flanges are made of orthodox forging material in Shanxi, both strength and sealing are the best materials. Do not compare the cast steel and steel plate flange on the market with no comparability.

Welding consumables: welding materials are higher than the level of the parent material standard, let the welding point more firmly.

Limit ear plate: ear boards are all made by increasing thickening dimensions, each model can be compared with the same industry's one type to one to one, which is called no contrast, no harm.

Limit screw: the screw is all 8.8 - grade high - strength zinc plating, which is * to ensure the comprehensive strength of the product, not to compare with the market level 4.8.

Production standard: Songjiang group passes the national pressure pipe production license requirement, TS number: TS2731B90-2020, and is strictly controlled according to the production requirement of TS pressure pipe, so that every corrugated compensator product of factory reaches * qualified.
