EPDMCASE SHOW

【EPDM】球墨法蘭三元乙丙橡膠接頭“外觀專利”

服務內容：【EPDM】球墨法蘭三元乙丙橡膠接頭“外觀專利”

簡介：【EPDM】球墨法蘭三元乙丙橡膠接頭“外觀專利” "Appearance Patent" for EPDM Joints with Ductile Graphite Flanges 上海淞江減震器集團有限公司官方網站為您介紹：【EPDM】球墨法蘭三元乙丙橡膠接頭“外觀專......

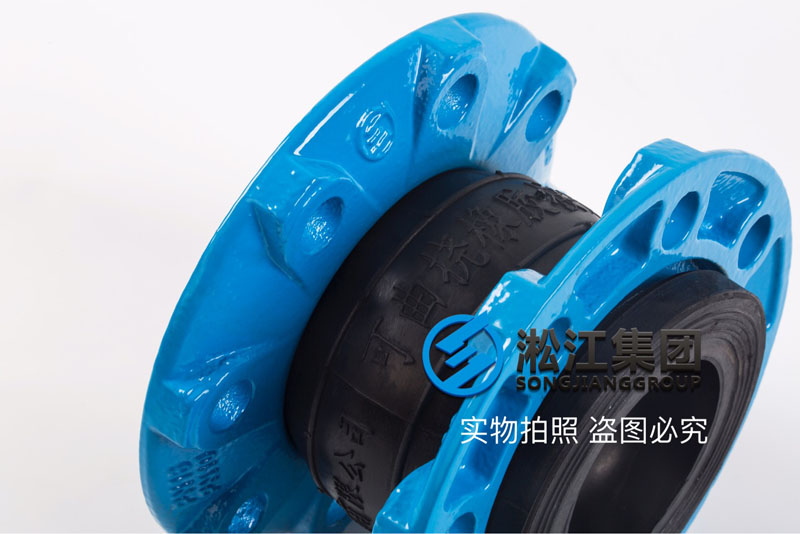

【EPDM】球墨法蘭三元乙丙橡膠接頭“外觀專利”
"Appearance Patent" for EPDM Joints with Ductile Graphite Flanges

上海淞江減震器集團有限公司官方網站為您介紹：【EPDM】球墨法蘭三元乙丙橡膠接頭“外觀專利”信息，淞江集團為眾多客戶提供新式球墨法蘭三元乙丙橡膠接頭，法蘭采用新型設計，并申請了外觀設計專利，施工更輕便，外觀更新穎。
The official website of Shanghai Songjiang Shock Absorber Group Co., Ltd. introduces to you: [EPDM] EPDM nodular flange ternary EPDM rubber joint "appearance patent" information, Songjiang Group provides new type nodular flange ternary EPDM rubber joint for many customers, the flange uses new design, and applied for the appearance design patent, construction is lighter, and more convenient. The outlook is more original.

說明：

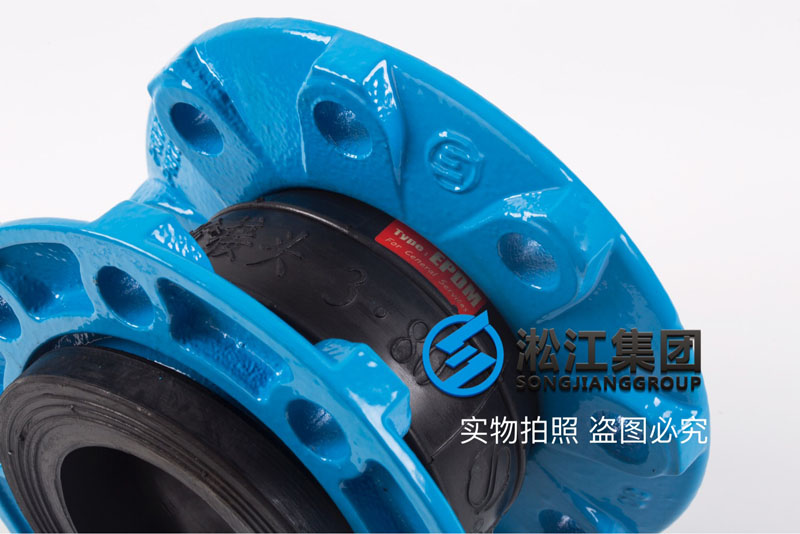

我公司耐高溫橡膠接頭閥體上有材質標識區，箭頭指向EPDM，如果箭頭沒有指向EPDM，那么該產品不是三元乙丙橡膠接頭，請勿在耐酸堿、耐高溫環境使用，避免帶來安全隱患，可以聯系我們。

Explain:

There is a material identification area on the valve body of our company's high-temperature resistant rubber joint, and the arrow points to EPDM. If the arrow does not point to EPDM, the product is not EPDM joint. Please do not use it in acid-base and high-temperature resistant environment to avoid potential safety hazards. You can contact us.

名稱：EPDM橡膠接頭

型號：KXT-QT450-EPDM

口徑：DN80（了解該產品參數信息請點擊：【樣冊P33】KXT型可曲撓橡膠接頭）

壓力：1.6Mpa

長度：135mm

軸向壓縮：12mm

軸向拉伸：6mm

橫向位移：10mm

偏向角度：15°

橡膠材質：三元乙丙橡膠（三井4045）

法蘭材質：球墨QT450（另有碳鋼、不銹鋼可選擇）

法蘭標準：GB/T 9119-2000 （除此法蘭標準之外，我廠還可以配套更多法蘭標準，如需了解其他法蘭標準請點擊：橡膠接頭法蘭標準）

適用介質：弱酸堿、強堿、石灰漿液、脫硫、化工廠污水、高溫120度以下；（注明：強酸堿、稀硫酸不能用，要選擇內襯聚四氟乙烯橡膠接頭才可以使用。）

使用優點：減震、降噪、保護液壓設備的長期使用，降低維修成本。

質保期限：12個月

生產廠家：上海淞江減震器集團有限公司

資質證書：合格證、質保書、檢驗報告、國家型式試驗報告、第三方性能檢測報告、含量成分檢測報告、德國萊茵TUV證書。

Name: EPDM rubber joint

Model: KXT-EPDM

Caliber: DN80

Pressure: 1.6Mpa

Length: 135mm

Axial compression: 12mm

Axial tension: 6mm

Lateral displacement: 10mm

Deviation angle: 15 degrees.

Rubber material: three yuan ethylene propylene rubber (Mitsui 4045)

Flange material: carbon steel / ductile QT450 / stainless steel.

Flange standard: GB/T 9119-2000 (in addition to this flange standard, our factory can also support more flange standards, if you need to know other flange standards, please click: rubber joint flange standard)

Applicable media: weak acid and alkali, strong alkali, lime slurry, desulfurization, chemical plant sewage, high temperature below 120 degrees; (Note: strong acid and alkali, dilute sulfuric acid can not be used, to choose tetrafluororubber joint can be used.)

Advantages: shock absorption, noise reduction, protection of hydraulic equipment for long-term use, reduce maintenance costs.

Warranty period: 12 months.

Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

Qualification Certificate: Qualification Certificate, Quality Assurance Certificate, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Content Component Test Report.

相關鏈接：EPDM橡膠接頭含量檢測報告
Related links

以下是淞江集團介紹：
The following is the introduction of Songjiang group

相關鏈接：橡膠接頭案例
